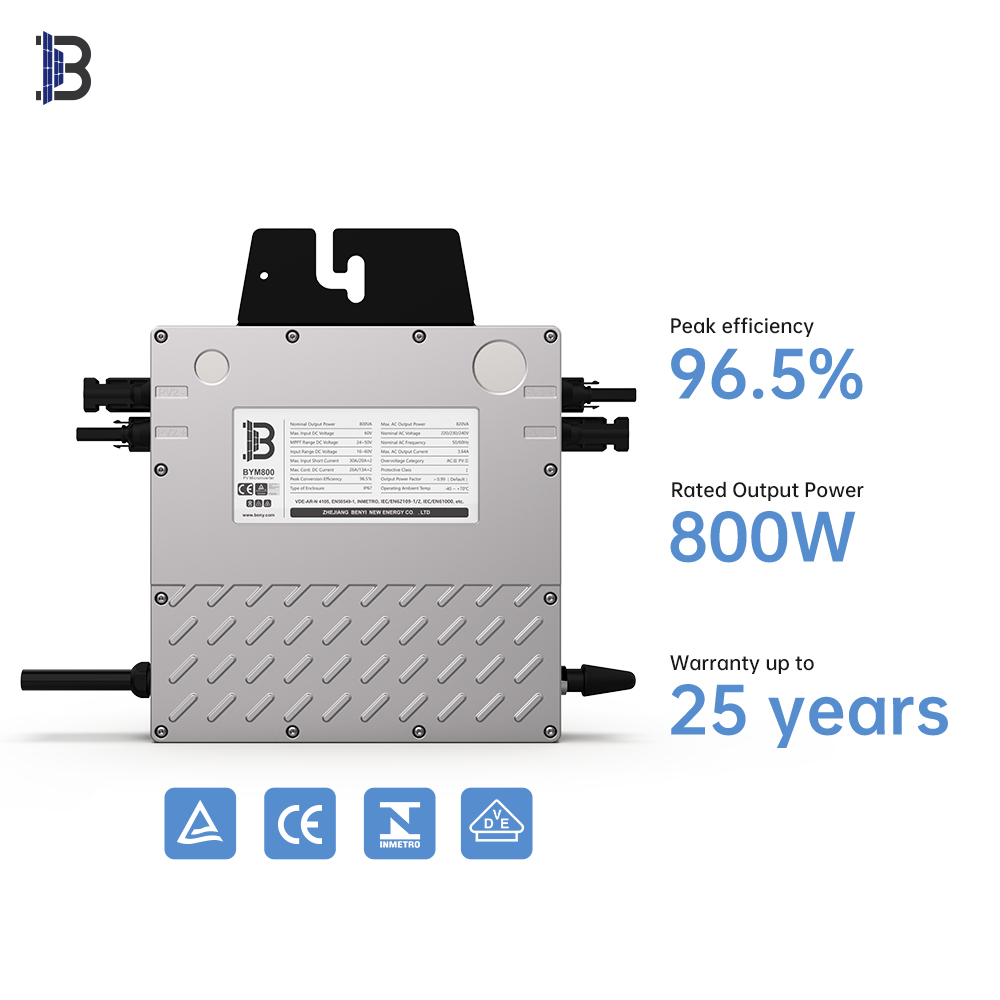

Dual-In Microinverter 800W
Highlights:
- Connected to one or two panels
- Rated output power 800VA
- Peak efficiency 96.5%
- Maximum short circuit input current 30A/20A*2
- Maximum continuous input current 26A/13A*2
- 12/25 years warranty optional
- Wi-Fi/PLCC supported
With the maximum output power of 820VA, the BYM800 microinverter can connect to 1 panel or 2 panels and enable module-level maintenance and management of the PV station by monitoring the power generation of each module.
Module-level data can be uploaded to the monitoring platform via PVB data transfer units through PLCC/Wi-Fi.
Maximize Energy Production
1.Boost Output by 97.5%:
Get the most from your solar panels with industry-leading peak efficiency.
2.Shade Doesn’t Stop Us:
Individual MPPT for each panel ensures optimal performance, even with shading or mismatched panels.
3.Handle More Power:
Higher 20A continuous input capacity maximizes system output.
4.Beat the Heat:
Operate confidently in extreme temperatures with the industry’s best range (-40°C to 70°C), minimal derating (10% at 55°C), and 50% output even at 70°C.
Smart Monitoring at Your Fingertips
1.Real-Time Insights:
BENY’s monitoring system provides module-level data for precise control and optimization.
2.No Extra Cables Needed:
Utilizes existing power lines through PLCC and Wi-Fi wireless communication for a clean and convenient setup.
3.Remote Management Made Easy:
Monitor and manage your PV station remotely for maximized system performance and reduced maintenance costs.
